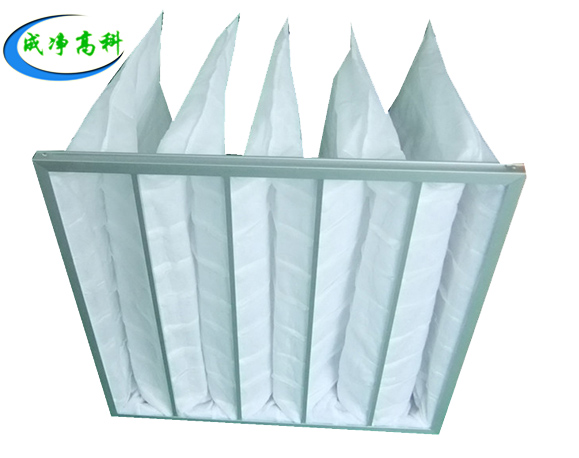

Air filter bag filter early effect
特點Features
●可重復使用多次
●阻力小、風量大
●廣泛運用于空調系統的中級過濾
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning system of intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金或鍍鋅板外框
●External frane：Aluminum alloy steel or frame
●濾料材質：新型復合無紡布
●Filter material: new composite nonwoven fabric
●濾料顏色：白色
●Liao color: white
●密封條：醋酸乙酯
●Gasket：EVA
●使用溫度、濕度：80℃、80%以內
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
|
型號 model |
外形尺寸 Outside Dimensions (mm) |
額定風量 Rated air flow (m3/h) |
初阻力 Initial resistance(Pa) |
效率（級別） Efficiency (class) |
濾料顏色 Liao color |
袋數 pockets |
|
CJ-S10-A1 |
495×295×500mm 20″×12″×20″ |
1500m3/h |
25~35Pa
|
25-35% G3
35-45% G4 |
White |
5 |
|
CJ-S10-A2 |
495×495×500mm 20″×20″×20″ |
2500m3/h |
5 |
|||
|
CJ-S10-A3 |
595×295×500mm 24″×12″×20″ |
2000m3/h |
6 |
|||
|
CJ-S10-A4 |
595×495×500mm 24″×20″×20″ |
3200m3/h |
6 |
|||
|
CJ-S10-A5 |
595×595×500mm 24″×24″×20″ |
3800m3/h |
8 |
|||
|
CJ-S10-A6 |
495×295×600mm 20″×12″×24″ |
1800m3/h |
5 |
|||
|
CJ-S10-A7 |
495×495×600mm 20″×20″×24″ |
3200m3/h |
5 |
|||
|
CJ-S10-A8 |
595×295×600mm 24″×12″×24″ |
2500m3/h |
6 |
|||
|
CJ-S10-A9 |
595×495×600mm 24″×20″×24″ |
4000m3/h |
6 |
|||
|
CJ-S10-A10 |
595×595×600mm 24″×24″×24″ |
4500m3/h |
8 |
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
