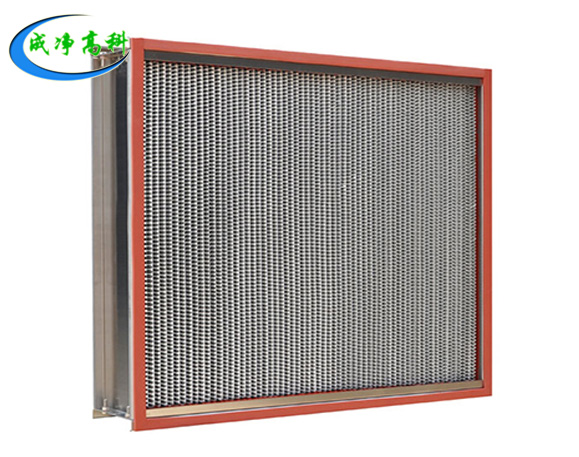

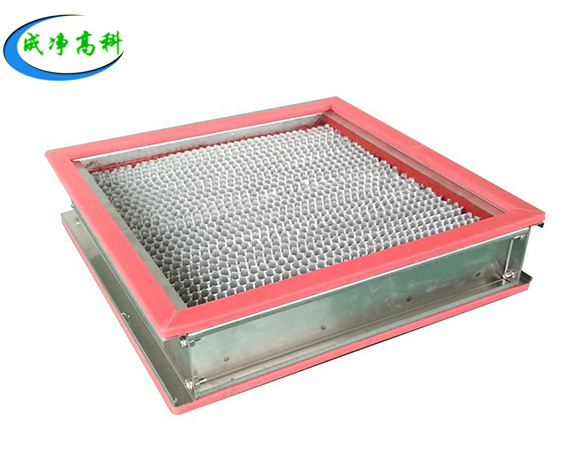

High temperature resistant efficient air filter
特點 Features
●阻力低、容塵量大
●耐高溫性能好
●主要用于超凈烘箱等要求高溫空氣凈化設備和系統.
●Low resistance and large amount of dust
●High temperature resistant performance is good
●Mainly used in high temperature oven laminar air purification equipment and systems.
構成材料及運行條件 Materials and operating conditions
●框材：不銹鋼外框
●External frane：Stainless steel frame
●密封物：專用耐高溫密封膠
●Sealant：High temperature resistant sealant
●分隔物：鋁箔
●Filter media：Aluminum foil
●濾料：玻纖濾紙
●Filter media：Glass fiber
●使用溫度、濕度：250~350℃、80%以內
●Use the highest temperature, humidity：250~350℃、80%
型號尺寸及其他參數(Standard specification)
|
型號 model |
外形尺寸 Outside dimensions (mm) |
額定風量 Rated air flow (m3/h) |
初阻力 Imitial resistance (Pa) |
效率（比色法） Efficiency (%) |
容塵量 Dust capacity (g) |
|
CJ-H5-A1 |
484×484×220 |
1000 |
≤220 |
≥99.99 |
600 |
|
CJ-H5-A2 |
610×610×150 |
1000 |
≤220 |
≥99.99 |
350 |
|
CJ-H5-A3 |
630×630×220 |
1600 |
≤220 |
≥99.99 |
400 |
|
CJ-H5-A4 |
610×610×292 |
2200 |
≤220 |
≥99.99 |
600 |
*可要據用戶要求定制不同規格型號的過濾器
